SK-51 Type A
Information

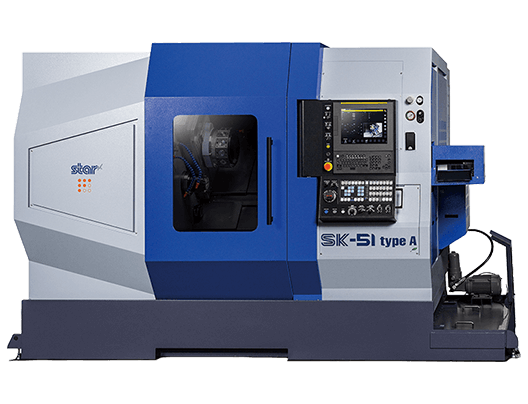

The SK-51 Type A fixed headstock lathe is a 2-inch bar capacity slant-bed machine equipped with twin 12-station turrets, offering 7.5kW powered driven tools on every station. It offers 5,000rpm on the main and sub spindles, and a 640MM Z-axis stroke length on both turrets.
The machines features the advanced FANUC iHMI control system with a 15-inch touchscreen that offers conversational programming dialogue, free figure contour programming and a fixed phrase insert function for the configuration of individual blocks of code to drop into the final program. Toolpath simulation is also built into the control.
WORKPIECE |
||
|---|---|---|
| DIAMETER |  |
51mm |
| LENGTH |  |
640mm |
| GEOMETRY |  |
|
| C AXIS |  |
MAIN + SUB SPINDLE |
Benefits
- Standard machining diameter 38mm (42mm optional)
- Z1 Stroke of 350mm
- Twin turrets on main spindle for balanced turn-mill operations
- Powerful 11.0 Kw main spindle
- Z3 axis enables SUPER-POSITION control for increased overlap
- YA2 axis on sub-spindle enables off-center pick up
- Tool pre-setter included for easy tool set-up
- STAR MOTION CONTROL to minimize idle time
- Independent turret for sub-spindle for maximum overlap
Specification
| MAIN SPINDLE SIDE | |
|---|---|
| Number of axes | 12 |
| Main spindle (headstock) | Z1 / C1 AXIS |
| MAIN SPINDLE TURRETS | X1 / Y1 / X3 / Y3 / Z3 AXIS |
| MAX MACHINING DIAMETER | 38 MM / 42 MM (OPTION) |
| HEADSTOCK STROKE) | 350 MM |
| MAIN SPINDLE POWER | 11.0 KW |
| MAIN SPINDLE SPEED | 7,000 rpm |
| MAIN SPINDLE TOOLING | |
| Turning tool | 16 MM SQ + 20 MM SQ (CUT-OFF) |
| TURRET SLEEVE HOLDER CAPACITY | Ø 22 MM SLEEVES (ER16) + Ø 32 MM SLEEVES (ER20) |
| MAX DRIVEN TOOL (PDT) POWER | 4.0 KW |
| MAX (PDT) SPEED | 5,700 RPM |
| KINEMATIC DIAGRAM |
|---|
 |
| SUB SPINDLE SIDE | |
|---|---|
| Sub spindle | X2 / Y2 / Z2 / C2 / YA2 AXIS |
| Max. chucking diameter | 38 MM / 42 MM (OPTION) |
| SUB SPINDLE POWER | 7.5 KW |
| SUB SPINDLE SPEED | 7,000 RPM |
| SUB SPINDLE TOOLING | |
| TURNING TOOL | 16 MM SQ |
| TURRET SLEEVE HOLDER CAPACITY | Ø 22 MM SLEEVES (ER16) + Ø 32 MM SLEEVES (ER20) |
| MAX DRIVEN TOOL (PDT) POWER | 4.0 KW |
| MAX SPINDLE (PDT) SPEED | 5,700 RPM |

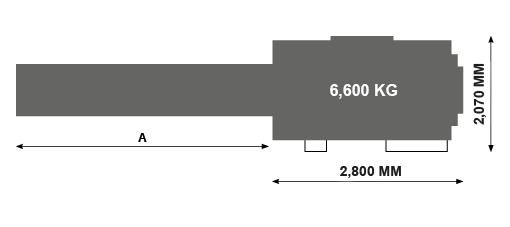

| FMB | BAR FEED DIMENSION A (MM) | ||
|---|---|---|---|
| Turbo 5-65 | 4416 (3.2M) | 4516 (4.2M) | 7416 (6.2M) |
